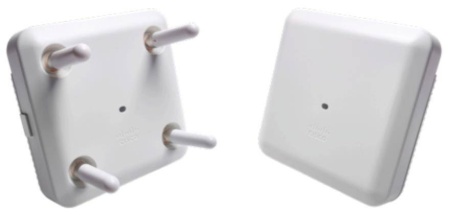

Cisco Aironet 2800 построены для небольших организаций, офисов, филиалов. Гарантируют повышенную безопасность, исключительную производительность, улучшенную пропускную способность. Располагают расширенным функционалом, выполняют моментальный сетевой анализ, прослеживают сбои в работе и предоставляют высокую работоспособность.
Точки доступа контролируют безотказность системы, выявляют и оперативно ликвидируют вероятные угрозы. Применяют встроенную гиперлокацию, включают защищенное высокоскоростное подключение, поддерживают возможность выбора динамической полосы пропускания.
|
Software |
● Cisco Unified Wireless Network Software Release 8.2.111.0 or later ● Cisco IOS® XE Software Release 16.3 |
||||||
|
Supported wireless LAN controllers |
● Cisco 2500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst® 6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex® 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco Virtual Wireless Controller ● Cisco Catalyst 3850 Series Switches, Cisco Catalyst 3650 Series Switches ● Cisco Mobility Express |
||||||
|
802.11n version 2.0 (and related) capabilities |
● 4x4 MIMO with three spatial streams ● Maximal Ratio Combining (MRC) ● 802.11n and 802.11a/g beamforming ● 20- and 40-MHz channels ● PHY data rates up to 450 Mbps (40 MHz with 5 GHz) ● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) ● 802.11 Dynamic Frequency Selection (DFS) ● Cyclic Shift Diversity (CSD) support |
||||||
|
802.11ac Wave 1 capabilities |
● 4x4 MIMO with three spatial streams ● MRC ● 802.11ac beamforming ● 20-, 40-, and 80-MHz channels ● PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz) ● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) ● 802.11 DFS ● CSD support |
||||||
|
802.11ac Wave 2 capabilities |
● 4x4 MU-MIMO with three spatial streams ● MRC ● 802.11ac beamforming ● 20-, 40-, 80, 160-MHz channels ● PHY data rates up to 5.2 Gbps ● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) ● 802.11 DFS ● CSD support |
||||||
|
Integrated antenna |
Flexible radio (either 2.4 GHz or 5 GHz) ● 2.4 GHz, gain 4 dBi, internal antenna, omnidirectional in azimuth● 5 GHz, gain 6 dBi, internal directional antenna, elevation plane beamwidth 90° Dedicated 5-GHz radio ● 5 GHz, gain 5 dBi, internal antenna, omnidirectional in azimuth |
||||||
|
External antenna (sold separately) |
● 2802e Series access points are certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz) ● Cisco offers the industry's broadest selection ofantennas, delivering optimal coverage for a variety of deployment scenarios |
||||||
|
Smart antenna connector |
● Available on the 2802e Series access points only ● Requires the AIR-CAB002-DART-R= 2 ft smart antenna connector to RP-TNC connectors to connect a second antenna to the access point ● Required when running the flexible radio as either a second 5-GHz serving radio or Wireless Security Monitoring radio |
||||||
|
Interfaces |
● 2802I/E ◦ 2x100/1000BASE-T autosensing (RJ-45) ● Management console port (RJ-45) ● USB 2.0 (enabled via future software) |
||||||
|
Indicators |
● Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors |
||||||
|
Dimensions (W x L x H) |
● Access point (without mounting brackets): 2802I: 8.66” x 8.68” x 2.17”, 2802E: 8.66” x 8.77” x 2.50” |
||||||
|
Weight |
Cisco Aironet 2802i ● 3.53 lb (1.6 kg)Cisco Aironet 2802e ● 4.6 lb (2.09 kg) |
||||||
|
Input power requirements |
● 802.3at PoE+, Cisco Universal PoE (Cisco UPOE®) ● 802.3at power injector (AIR-PWRINJ6=) |
||||||
|
Power draw |
● 22.5W at the PSE (20W at the PD) with all features enabled except for the USB 2.0 port ● 26.5W at the PSE (23W at the PD) with the USB 2.0 port enabled |
||||||
|
Environmental |
Cisco Aironet 2802i ● Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)● Nonoperating (storage) altitude test: 25˚C, 15,000 ft. ● Operating temperature: 32° to 104°F (0° to 40°C) ● Operating humidity: 10% to 90% (noncondensing) ● Operating altitude test: 40˚C, 9843 ft. Cisco Aironet 2802e ● Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)● Nonoperating (storage) altitude test: 25˚C, 15,000 ft. ● Operating temperature: -4° to 122°F (-20° to 50°C) ● Operating humidity: 10% to 90% (noncondensing) ● Operating altitude test: 40˚C, 9843 ft. |
||||||
|
System memory |
● 1024 MB DRAM ● 256 MB flash |
||||||
|
Серия
|
Aironet 2800 |
|
Тип товара
|
Точка доступа |
|
Тип использования
|
Внутренняя |
|
Тип антенны
|
Внутренняя |
|
Кол-во антенн
|
4 |
|
Частота
|
2,4 ГГЦ - 5 ГГЦ |
|
Поддержка PoE
|
Да |
