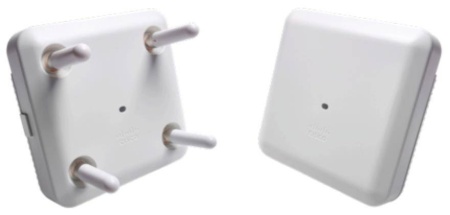

Точка доступа Cisco Aironet 2800 AIR-AP2802E-R-K9

Артикул: AIR-AP2802E-R-K9

Официальный дилер

В наличии / под заказ
Скидка на товар: до 10%
106 826 руб. за 1 шт.

Бесплатный подбор: 8 (800) 511-12-04


Артикул AIR-AP2802E-R-K9
Серия 2800
Доставка: от 2 до 6 недель
Оплата: в рублях по курсу ЦБ на день оплаты по безналичному расчёту.
  • Описание
  • Характеристики

Cisco Aironet 2800 построены для небольших предприятий, офисов, филиалов. Гарантируют филиалов безопасность, исключительную производительность, максимальную пропускную способность. Владеют расширенным функционалом, выполняют мгновенный сетевой анализ, отслеживают аномалии в работе и предлагают высокую трудоспособность.

Точки доступа контролируют исправность системы, выявляют и незамедлительно ликвидируют потенциальные угрозы. Используют встроенную гиперлокацию, включают защищенное высокоскоростное подключение, поддерживают возможность выбора динамической полосы пропускания.


Software

●  Cisco Unified Wireless Network Software Release 8.2.111.0 or later
●  Cisco IOS® XE Software Release 16.3

Supported wireless LAN controllers

●  Cisco 2500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst® 6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex® 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco Virtual Wireless Controller
●  Cisco Catalyst 3850 Series Switches, Cisco Catalyst 3650 Series Switches
●  Cisco Mobility Express

802.11n version 2.0 (and related) capabilities

●  4x4 MIMO with three spatial streams
●  Maximal Ratio Combining (MRC)
●  802.11n and 802.11a/g beamforming
●  20- and 40-MHz channels
●  PHY data rates up to 450 Mbps (40 MHz with 5 GHz)
●  Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
●  802.11 Dynamic Frequency Selection (DFS)
●  Cyclic Shift Diversity (CSD) support

802.11ac Wave 1 capabilities

●  4x4 MIMO with three spatial streams
●  MRC
●  802.11ac beamforming
●  20-, 40-, and 80-MHz channels
●  PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz)
●  Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
●  802.11 DFS
●  CSD support

802.11ac Wave 2 capabilities

●  4x4 MU-MIMO with three spatial streams
●  MRC
●  802.11ac beamforming
●  20-, 40-, 80, 160-MHz channels
●  PHY data rates up to 5.2 Gbps
●  Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
●  802.11 DFS
●  CSD support

Integrated antenna

Flexible radio (either 2.4 GHz or 5 GHz)

●  2.4 GHz, gain 4 dBi, internal antenna, omnidirectional in azimuth
●  5 GHz, gain 6 dBi, internal directional antenna, elevation plane beamwidth 90°

Dedicated 5-GHz radio

●  5 GHz, gain 5 dBi, internal antenna, omnidirectional in azimuth

External antenna (sold separately)

●  2802e Series access points are certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz)
●  Cisco offers the industry's broadest selection ofantennas, delivering optimal coverage for a variety of deployment scenarios

Smart antenna connector

●  Available on the 2802e Series access points only
●  Requires the AIR-CAB002-DART-R= 2 ft smart antenna connector to RP-TNC connectors to connect a second antenna to the access point
●  Required when running the flexible radio as either a second 5-GHz serving radio or Wireless Security Monitoring radio

Interfaces

●  2802I/E
◦   2x100/1000BASE-T autosensing (RJ-45)
●  Management console port (RJ-45)
●  USB 2.0 (enabled via future software)

Indicators

●  Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors

Dimensions (W x L x H)

●  Access point (without mounting brackets): 2802I: 8.66” x 8.68” x 2.17”, 2802E: 8.66” x 8.77” x 2.50”

Weight

Cisco Aironet 2802i

●  3.53 lb (1.6 kg)

Cisco Aironet 2802e

●  4.6 lb (2.09 kg)

Input power requirements

●  802.3at PoE+, Cisco Universal PoE (Cisco UPOE®)
●  802.3at power injector (AIR-PWRINJ6=)

Power draw

●  22.5W at the PSE (20W at the PD) with all features enabled except for the USB 2.0 port
●  26.5W at the PSE (23W at the PD) with the USB 2.0 port enabled

Environmental

Cisco Aironet 2802i

●  Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)
●  Nonoperating (storage) altitude test: 25˚C, 15,000 ft.
●  Operating temperature: 32° to 104°F (0° to 40°C)
●  Operating humidity: 10% to 90% (noncondensing)
●  Operating altitude test: 40˚C, 9843 ft.

Cisco Aironet 2802e

●  Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)
●  Nonoperating (storage) altitude test: 25˚C, 15,000 ft.
●  Operating temperature: -4° to 122°F (-20° to 50°C)
●  Operating humidity: 10% to 90% (noncondensing)
●  Operating altitude test: 40˚C, 9843 ft.

System memory

●  1024 MB DRAM
●  256 MB flash
