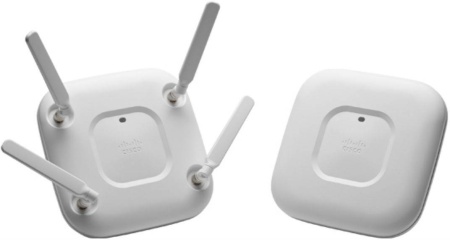

Серия Cisco Aironet 2700 разработана для малых и средних организаций, фирм, компаний. Продуктивно справляется с поставленными задачами. Предоставляет высокую скорость передачи данных, организует максимальный охват площади.
Точки доступа снабжены расширенным функционалом, позволяют поддерживать исключительную пропускную способность в производственных, офисных и сервисных сетях. Являются надежными, производительными, оснащены улучшенной масштабируемостью, минимизируют риск простоя.
|
802.11n version 2.0 (and related) capabilities |
● 3x4 MIMO with three spatial streams ● Maximal ratio combining (MRC) ● 802.11n and 802.11a/g beamforming ● 20- and 40-MHz channels ● PHY data rates up to 450 Mbps (40 MHz with 5 GHz) ● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) ● 802.11 dynamic frequency selection (DFS) ● Cyclic shift diversity (CSD) support |
|||||||
|
802.11ac Wave 1 capabilities |
● 3x4 MIMO with three spatial streams ● MRC ● 802.11ac beamforming ● 20-, 40-, and 80-MHz channels ● PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz) ● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) ● 802.11 DFS ● CSD support |
|||||||
|
Integrated antenna |
● 2.4 GHz, gain 4 dBi, internal omni, horizontal beamwidth 360° ● 5 GHz, gain 4 dBi, internal omni, horizontal beamwidth 360° |
|||||||
|
Interfaces |
● 2x10/100/1000BASE-T autosensing (RJ-45) ● Management console port (RJ-45) |
|||||||
|
Indicators |
● Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors |
|||||||
|
Dimensions (W x L x H) |
● Access point (without mounting bracket): 8.69 x 8.69 x 1.99 in. (22.1 x 22.1 x 5.1 cm) |
|||||||
|
Weight |
● 2.2 lb (1.0 kg) |
|||||||
|
Environmental |
Cisco Aironet 2700e ● Nonoperating (storage) altitude test: 25˚C, 15,000 ft. ● Operating temperature: −4° to 122°F (-20° to 50°C) ● Operating humidity: 10% to 90% (noncondensing) ● Operating altitude test: 40˚C, 9843 ft. |
|||||||
|
System memory |
● 512 MB DRAM ● 64 MB flash |
|||||||
|
Input power requirements |
● AP2700: 44 to 57 VDC ● Power supply and power injector: 100 to 240 VAC; 50 to 60 Hz |
|||||||
|
Power draw |
● AP2700: 15W Note: When deployed using a Power over Ethernet (PoE) specification, the power drawn from the power sourcing equipment will be higher by some amount dependent on the length of the interconnecting cable. |
|||||||
|
Powering options |
● 802.3at PoE+ ● Enhanced PoE ● Cisco AP2700 power injectors (AIR-PWRINJ4=) ● Cisco AP2700 local power supply (AIR-PWR-C= or AIR-PWR-D=) Note: If 802.3af PoE is the source of power, the access point will dynamically shift from 3x4 to 3x3 and come up under PoE. |
|||||||
|
Warranty |
Limited lifetime hardware warranty |
|||||||
|
Compliance standards |
◦ UL 60950-1 ◦ CAN/CSA-C22.2 No. 60950-1 ◦ UL 2043 ◦ IEC 60950-1 ◦ EN 60950-1 ◦ EN 50155 ● Radio approvals: ◦ FCC Part 15.247, 15.407 ◦ RSS-210 (Canada) ◦ EN 300.328, EN 301.893 (Europe) ◦ ARIB-STD 66 (Japan) ◦ ARIB-STD T71 (Japan) ◦ EMI and susceptibility (Class B) ◦ FCC Part 15.107 and 15.109 ◦ ICES-003 (Canada) ◦ VCCI (Japan) ◦ EN 301.489-1 and -17 (Europe) ◦ EN 60601-1-2 EMC requirements for the Medical Directive 93/42/EEC ● IEEE standards: ◦ IEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d ◦ IEEE 802.11ac Draft 5 ● Security: ◦ 802.11i, Wi-Fi Protected Access 2 (WPA2), WPA ◦ 802.1X ◦ Advanced Encryption Standards (AES), Temporal Key Integrity Protocol (TKIP) ● Extensible Authentication Protocol (EAP) types: ◦ EAP-Transport Layer Security (TLS) ◦ EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2) ◦ Protected EAP (PEAP) v0 or EAP-MSCHAPv2 ◦ EAP-Flexible Authentication via Secure Tunneling (FAST) ◦ PEAP v1 or EAP-Generic Token Card (GTC) ◦ EAP-Subscriber Identity Module (SIM) ● Multimedia: ◦ Wi-Fi Multimedia (WMM) ● Other: ◦ FCC Bulletin OET-65C ◦ RSS-102 |
|||||||
|
Серия
|
Aironet 2700 |
|
Тип товара
|
Точка доступа |
|
Тип использования
|
Внутренняя |
|
Тип антенны
|
Внутренняя |
|
Кол-во антенн
|
3 |
|
Частота
|
2,4 ГГЦ - 5 ГГЦ |
|
Поддержка PoE
|
Да |
