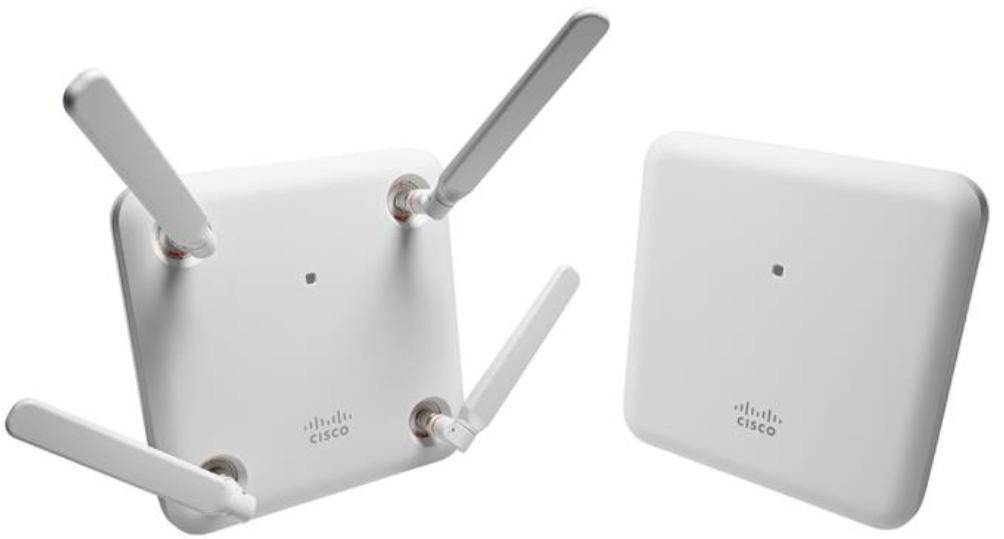

Точка доступа Cisco Aironet 1850 AIR-AP1852E-R-K9C

Артикул: AIR-AP1852E-R-K9C

Официальный дилер

В наличии / под заказ
Скидка на товар: до 10%

Бесплатный подбор: 8 (800) 511-12-04


Артикул AIR-AP1852E-R-K9C
Серия 1850
Доставка: от 2 до 6 недель
Оплата: в рублях по курсу ЦБ на день оплаты по безналичному расчёту.
  • Описание
  • Характеристики

Cisco Aironet 1850 разработаны для небольших организаций, офисов, компаний. Гарантируют надежность и безопасность, исключительную производительность, улучшенную пропускную способность. Содержат расширенный функционал, выполняют моментальный сетевой анализ, отслеживают неисправности в работе и предлагают высокую функциональность.

Точки доступа контролируют безотказность системы, выявляют и оперативно ликвидируют возможные угрозы. Используют встроенную гиперлокацию, включают защищенное высокоскоростное подключение, поддерживают возможность выбора динамической полосы пропускания.



Integrated antenna

●  2.4 GHz, gain 3 dBi, internal omni, horizontal beamwidth 360°
●  5 GHz, gain 5 dBi, internal omni, horizontal beamwidth 360°

External antenna (sold separately)

●  Certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz)
●  Cisco offers the industry's broadest selection ofantennas, delivering optimal coverage for a variety of deployment scenarios

Interfaces

●  1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE)
●  1 x 10/100/1000BASE-T autosensing (RJ-45), AUX (used for Link Aggregation)
●  Management console port (RJ-45)
●  USB 2.0 (enabled via future software)

Indicators

●  Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors

Dimensions

(W x L x H)

●  Access point (without mounting bracket): 8.3 x 8.3 x 2 in. (210.8 x 210.8 x 50.8 mm)

Weight

●  3.12 lb (1.41 kg)

Environmental

Cisco Aironet 1850i

●  Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)
●  Nonoperating (storage) altitude test: 25˚C, 15,000 ft.
●  Operating temperature: 32° to 122°F (0° to 50°C)
●  Operating humidity: 10% to 90% (noncondensing)
●  Operating altitude test: 40˚C, 9843 ft.

Cisco Aironet 1850e

●  Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)
●  Nonoperating (storage) altitude test: 25˚C, 15,000 ft.
●  Operating temperature: -4° to 122°F (-20° to 50°C)
●  Operating humidity: 10% to 90% (noncondensing)
●  Operating altitude test: 40˚C, 9843 ft.

System memory

●  1 GB DRAM
●  256 MB flash

Input power requirements

●  AP1850: 44 to 57 VDC
●  Power supply and power injector: 100 to 240 VAC; 50 to 60 Hz

Power draw

●  20.9W

Note: When deployed using a Power over Ethernet (PoE) specification, the power drawn from the power sourcing equipment will be higher by some amount, depending on the length of the interconnecting cable.

Powering options

●  802.3at
●  Enhanced PoE
●  Cisco power injector, AIR-PWRINJ6=
●  Cisco local power supply, AIR-PWR-D=
●  Cisco power injector, AIR-PWRINJ5= (Note: this injector supports 802.3af only)
●  802.3af

Note: If 802.3af PoE is the source of power, (1) the 1852e 2.4-GHz radio will shift to 2x3 from 3x4, (2) The USB port and AUX Ethernet port are disabled on both the 1852i and 1852e.

Warranty

Limited lifetime hardware warranty

Compliance standards

◦   UL 60950-1
◦   CAN/CSA-C22.2 No. 60950-1
◦   UL 2043
◦   IEC 60950-1
◦   EN 60950-1
●  Radio approvals:
◦   FCC Part 15.247, 15.407 *
◦   RSS-210 (Canada)
◦   EN 300.328, EN 301.893 (Europe)
◦   ARIB-STD 66 (Japan)
◦   ARIB-STD T71 (Japan)
◦   EMI and susceptibility (Class B)
◦   FCC Part 15.107 and 15.109 *
◦   ICES-003 (Canada)
◦   VCCI (Japan)
◦   EN 301.489-1 and -17 (Europe)
◦   EN 60601-1-2 EMC requirements for the Medical Directive 93/42/EEC
●  IEEE standards:
◦   IEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d
◦   IEEE 802.11ac Draft 5
●  Security:
◦   802.11i, Wi-Fi Protected Access 2 (WPA2), WPA
◦   802.1X
◦   Advanced Encryption Standard (AES)
●  Extensible Authentication Protocol (EAP) types:
◦   EAP-Transport Layer Security (TLS)
◦   EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2)
◦   Protected EAP (PEAP) v0 or EAP-MSCHAPv2
◦   EAP-Flexible Authentication via Secure Tunneling (FAST)
◦   PEAP v1 or EAP-Generic Token Card (GTC)
◦   EAP-Subscriber Identity Module (SIM)
●  Multimedia:
◦   Wi-Fi Multimedia (WMM)
●  Other:
◦   FCC Bulletin OET-65C
◦   RSS-102
