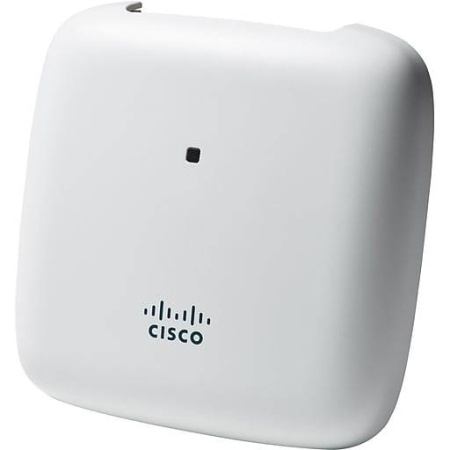

Cisco Aironet 1815 созданы для небольших организаций, офисов, компаний. Гарантируют надежность и безопасность, исключительную производительность, улучшенную пропускную способность. Имеют расширенный функционал, выполняют мгновенный сетевой анализ, отслеживают сбои в работе и предоставляют высокую работоспособность.
Точки доступа контролируют бесперебойность системы, выявляют и оперативно уничтожают вероятные угрозы. Используют встроенную гиперлокацию, включают защищенное высокоскоростное подключение, поддерживают возможность выбора динамической полосы пропускания.
|
Item |
Specification |
||||||||
|
Authentication and security |
● Advanced Encryption Standard (AES) for Wi-Fi Protected Access 2 (WPA2) ● 802.1X, RADIUS authentication, authorization, and accounting (AAA) ● 802.11r ● 802.11i |
||||||||
|
Software |
● Cisco Unified Wireless Network Software with AireOS Wireless Controllers Release 8.5 or later ● Cisco Mobility Express |
||||||||
|
Maximum clients |
● Maximum number of associated wireless clients: 200 per Wi-Fi radio, in total 400 clients per access point |
||||||||
|
802.11ac |
● 2 x 2 single-user/multiuser MIMO with two spatial streams ● Maximal ratio combining (MRC) ● 20-, 40-, and 80-MHz channels ● PHY data rates up to 866.7 Mbps (80 MHz on 5 GHz) ● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Rx) ● 802.11 Dynamic Frequency Selection (DFS) ● Cyclic shift diversity (CSD) support |
||||||||
|
Ethernet ports |
● Authentication with 802.1X or MAC filtered ● Dynamic VLAN or per port ● Traffic locally switched or tunneled back to wireless LAN controller |
||||||||
|
Bluetooth (future availability) |
● Integrated Bluetooth 4.1 (including BLE) radio ● Maximum transmit power: 4 dBm ● Antenna gain: 2 dBi |
||||||||
|
Integrated antennas |
● 2.4 GHz, gain 2 dBi ● 5 GHz, gain 4 dBi |
||||||||
|
Interfaces |
● 1 x 10/100/1000BASE-T autosensing (RJ-45), Power over Ethernet (PoE) ● Management console port (RJ-45) |
||||||||
|
Indicators |
● Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors |
||||||||
|
Dimensions (W x L x H) |
● Access point (without mounting bracket): 6 x 6 x 1.3 in. (150.8 x 150.8 x 33mm) |
||||||||
|
Weight |
● Access point without mounting bracket or any other accessories: 1.01 lb (460 grams) |
||||||||
|
Environmental |
● Operating ◦ Temperature: 32° to 104°F (0° to 40°C) ◦ Humidity: 10% to 90% (noncondensing) ◦ Max. altitude: 9,843 ft (3,000m) @ 40’C ● Nonoperating (storage and transportation) ◦ Temperature: –22° to 158°F (–30° to 70°C) ◦ Humidity: 10% to 90% (noncondensing) ◦ Max. altitude: 15,000 ft (4,500m) @ 25’C |
||||||||
|
System |
● 1-GB DRAM ● 256-MB flash memory ● 710-MHz quad-core |
||||||||
|
Input power requirements |
● 802.3af or 802.3at power |
||||||||
|
Powering options |
● 802.3af/at Ethernet switch ● Optional Cisco power injectors (AIR-PWRINJ5=, AIR-PWRINJ6=) |
||||||||
|
Power draw |
● 12.5W (maximum, on PoE) |
||||||||
|
Physical security |
● Torx security screw, included with the access point |
||||||||
|
Mounting |
● Included with the access point: mounting bracket AIR-AP-BRACKET-8 |
||||||||
|
Accessories |
● Mounting bracket: AIR-AP-BRACKET-8= (available as spare) ● Physical security kit: AIR-SEC-50= (sold separately), with 50 pcs. security screws used to secure the access point onto wall-mounting bracket, 50 pcs. RJ-45 caps and 2 pcs. unlock keys used to block physical access to Ethernet ports |
||||||||
|
Серия
|
Aironet 1815 |
|
Тип товара
|
Точка доступа |
|
Тип использования
|
Внутренняя |
|
Тип антенны
|
Внутренняя |
|
Кол-во антенн
|
2 |
|
Частота
|
2,4 ГГЦ - 5 ГГЦ |
|
Поддержка PoE
|
Да |
