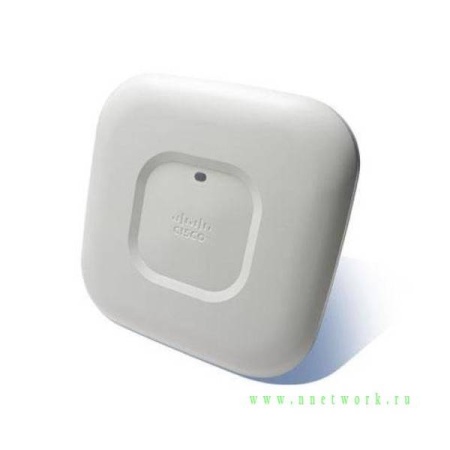

Серия Cisco Aironet 1700 создана для фирм, организаций, филиалов. Эффективно справляется с поставленными задачами, удовлетворяет постоянно растущим потребностям развивающихся предприятий. Предоставляет повышенную скорость передачи данных, организует оптимальный охват территории.
Точки доступа снабжены расширенными возможностями, позволяют поддерживать исключительную пропускную способность в корпоративных, офисных и сервисных сетях. Являются надежными, производительными, оснащены улучшенной масштабируемостью, снижают риск простоя.
|
Software |
Cisco Unified Wireless Network Software Release 8.0 or later Cisco Autonomous AP IOS Software Release 15.3.3-JAB or later |
|||||||
|
802.11n version 2.0 (and related) capabilities |
● 3x3 MIMO with two spatial streams ● Maximal ratio combining (MRC) ● 802.11n and 802.11a/g beamforming ● 20- and 40-MHz channels ● PHY data rates up to 300 Mbps (40 MHz with 5 GHz) ● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) ● 802.11 Dynamic Frequency Selection (DFS) ● Cyclic shift diversity (CSD) support |
|||||||
|
802.11ac Wave 1 capabilities |
● 3x3 MIMO with two spatial streams ● MRC ● 802.11ac standard explicit beamforming ● 20-, 40-, and 80-MHz channels ● PHY data rates up to 867 Mbps (80 MHz in 5 GHz) ● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) ● 802.11 DFS ● CSD support |
|||||||
|
Integrated antenna |
● 2.4 GHz, gain 4 dBi, internal omni, horizontal beamwidth 360° ● 5 GHz, gain 4 dBi, internal omni, horizontal beamwidth 360° |
|||||||
|
Interfaces |
● 2x10/100/1000BASE-T autosensing (RJ-45) ● Management console port (RJ-45) |
|||||||
|
Indicators |
● Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors |
|||||||
|
Dimensions |
● Access point (without mounting bracket): 8.69 x 8.69 x 1.99 in. (22.1 x 22.1 x 5.1 cm) |
|||||||
|
Weight |
● 2.2 lb (1.0 kg) |
|||||||
|
Environmental |
Cisco Aironet 1702i ● Non-operating (storage) temperature: −22° to 158°F (-30° to 70°C)● Non-operating (storage) altitude test: 25˚C, 15,000 ft. ● Operating temperature: 32° to 104°F (0° to 40°C) ● Operating humidity: 10% to 90% percent (non-condensing) ● Operating altitude test: 40˚C, 9843 ft. |
|||||||
|
System memory |
● 512 MB DRAM ● 64 MB flash |
|||||||
|
Input power requirements |
● AP1700: 44 to 57 VDC ● Power supply and power injector: 100 to 240 VAC; 50 to 60 Hz |
|||||||
|
Power draw |
● AP1700: 15W |
|||||||
|
Powering options |
● 802.3af PoE ● 802.3at PoE+ ● Enhanced PoE ● Cisco AP1700 power injectors (AIR-PWRINJ5=) ● Cisco AP1700 local power supply (AIR-PWR-C= or AIR-PWR-D=) |
|||||||
|
Warranty |
Limited lifetime hardware warranty |
|||||||
|
Compliance standards |
◦ UL 60950-1 ◦ CAN/CSA-C22.2 No. 60950-1 ◦ UL 2043 ◦ IEC 60950-1 ◦ EN 60950-1 ◦ EN 50155 ● Radio approvals: ◦ FCC Part 15.247, 15.407 ◦ RSS-210 (Canada) ◦ EN 300.328, EN 301.893 (Europe) ◦ ARIB-STD 66 (Japan) ◦ ARIB-STD T71 (Japan) ◦ EMI and susceptibility (Class B) ◦ FCC Part 15.107 and 15.109 ◦ ICES-003 (Canada) ◦ VCCI (Japan) ◦ EN 301.489-1 and -17 (Europe) ◦ EN 60601-1-2 EMC requirements for the Medical Directive 93/42/EEC ● IEEE standards: ◦ IEEE 802.11a/b/g, 802.11n, 802.11h, 802.11d ◦ IEEE 802.11ac Draft 5 ● Security: ◦ 802.11i, Wi-Fi Protected Access 2 (WPA2), WPA ◦ 802.1X ◦ Advanced Encryption Standards (AES), Temporal Key Integrity Protocol (TKIP) ● Extensible Authentication Protocol (EAP) types: ◦ EAP-Transport Layer Security (TLS) ◦ EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2) ◦ Protected EAP (PEAP) v0 or EAP-MSCHAPv2 ◦ EAP-Flexible Authentication via Secure Tunneling (FAST) ◦ PEAP v1 or EAP-Generic Token Card (GTC) ◦ EAP-Subscriber Identity Module (SIM) ● Multimedia: ◦ Wi-Fi Multimedia (WMM) ● Other: ◦ FCC Bulletin OET-65C ◦ RSS-102 Wi-Fi CERTIFIED™ a, b, g, n, ac |
|||||||
|
Серия
|
Aironet 1700 |
|
Тип товара
|
Комплект точек доступа |
|
Тип использования
|
Внутренняя |
|
Тип антенны
|
Внутренняя |
|
Кол-во антенн
|
3 |
|
Частота
|
2,4 ГГЦ - 5 ГГЦ |
|
Поддержка PoE
|
Да |
