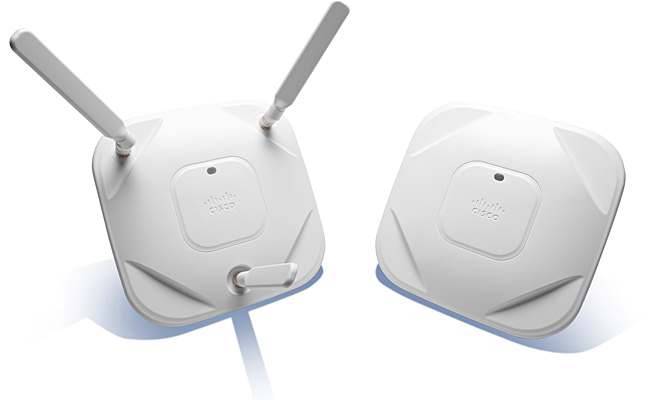

Серия Cisco Aironet 1600 разработана для использования в неблагоприятных условиях. Эффективно справляется с задачами любой, применяется для установки в помещениях. Предоставляет повышенную скорость передачи данных, организует максимальный охват площади.
Точки доступа оборудованы расширенным функционалом, позволяют поддерживать высочайшую пропускную способность в корпоративных, офисных и сервисных сетях. Являются надежными, производительными, оснащены улучшенной масштабируемостью, уменьшают риск простоя.
|
Integrated Antenna |
● 2.4 GHz, gain 4.0 dBi, horizontal beamwidth 360° ● 5 GHz, gain 4.0 dBi, horizontal beamwidth 360° |
|||||||||||
|
External Antenna (Sold Separately) |
● Certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz) ● Cisco offers the industry's broadest selection of 802.11n antennas delivering optimal coverage for a variety of deployment scenarios |
|||||||||||
|
Interfaces |
● 10/100/1000BASE-T autosensing (RJ-45) ● Management console port (RJ-45) |
|||||||||||
|
Indicators |
● Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors |
|||||||||||
|
Dimensions |
● Access point (without mounting bracket): 8.7 x 8.7 x 1.84 in. (22.1 x 22.1 x 4.7 cm) |
|||||||||||
|
Weight |
● 1.9 lbs. (0.86 kg) |
|||||||||||
|
Environmental |
Cisco Aironet 1600e ● Nonoperating (storage) Altitude Test - 25°C, 15,000 ft. ● Operating temperature: -4 to 122°F (-20 to 50°C) ● Operating humidity: 10 to 90 percent (noncondensing) ● Operating Altitude Test -40°C, 9843 ft |
|||||||||||
|
System Memory |
● 256 MB DRAM ● 32 MB flash |
|||||||||||
|
Input Power Requirements |
● AP1600: 44 to 57 VDC ● Power Supply and Power Injector: 100 to 240 VAC; 50 to 60 Hz |
|||||||||||
|
Powering Options |
● 802.3af Ethernet Switch ● Cisco AP1600 Power Injectors (AIR-PWRINJ4=, AIR-PWRINJ5=) ● Cisco AP1600 Local Power Supply (AIR-PWR-B=) |
|||||||||||
|
Power Draw |
● AP1600: 12.95 W Note: When deployed using PoE, the power drawn from the power sourcing equipment will be higher by some amount dependent on the length of the interconnecting cable. This additional power may be as high as 2.45W, bringing the total system power draw (access point + cabling) to 15.4W. |
|||||||||||
|
Warranty |
Limited Lifetime Hardware Warranty |
|||||||||||
|
Compliance |
Standards ● Safety:◦ UL 60950-1 ◦ CAN/CSA-C22.2 No. 60950-1 ◦ UL 2043 ◦ IEC 60950-1 ◦ EN 60950-1 ● Radio approvals: ◦ FCC Part 15.247, 15.407 ◦ RSS-210 (Canada) ◦ EN 300.328, EN 301.893 (Europe) ◦ ARIB-STD 33 (Japan) ◦ ARIB-STD 66 (Japan) ◦ ARIB-STD T71 (Japan) ◦ AS/NZS 4268.2003 (Australia and New Zealand) ◦ EMI and susceptibility (Class B) ◦ FCC Part 15.107 and 15.109 ◦ ICES-003 (Canada) ◦ VCCI (Japan) ◦ EN 301.489-1 and -17 (Europe) ◦ EN 60601-1-2 EMC requirements for the Medical Directive 93/42/EEC ● IEEE Standard: ◦ IEEE 802.11a/b/g, IEEE 802.11n, IEEE 802.11h, IEEE 802.11d ● Security: ◦ 802.11i, Wi-Fi Protected Access 2 (WPA2), WPA ◦ 802.1X ◦ Advanced Encryption Standards (AES), Temporal Key Integrity Protocol (TKIP) ● EAP Type(s): ◦ Extensible Authentication Protocol-Transport Layer Security (EAP-TLS) ◦ EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2) ◦ Protected EAP (PEAP) v0 or EAP-MSCHAPv2 ◦ Extensible Authentication Protocol-Flexible Authentication via Secure Tunneling (EAP-FAST) ◦ PEAPv1 or EAP-Generic Token Card (GTC) ◦ EAP-Subscriber Identity Module (SIM) ● Multimedia: ◦ Wi-Fi Multimedia (WMM ™ ) ● Other: ◦ FCC Bulletin OET-65C ◦ RSS-102 |
|||||||||||
|
Серия
|
Aironet 1600 |
|
Тип товара
|
Точка доступа |
|
Тип использования
|
Внутренняя |
|
Тип антенны
|
Внешняя |
|
Кол-во антенн
|
3 |
|
Частота
|
2,4 ГГЦ - 5 ГГЦ |
|
Поддержка PoE
|
Да |
