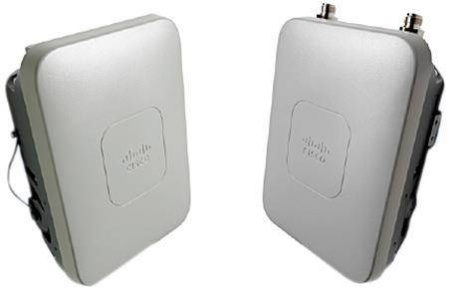

Точка доступа Cisco Aironet 1530 AIR-CAP1532I-I-K9

Артикул: AIR-CAP1532I-I-K9

Официальный дилер

В наличии / под заказ
Скидка на товар: до 10%

Бесплатный подбор: 8 (800) 511-12-04


Артикул AIR-CAP1532I-I-K9
Серия 1530
Доставка: от 2 до 6 недель
Оплата: в рублях по курсу ЦБ на день оплаты по безналичному расчёту.
  • Описание
  • Характеристики

Cisco Aironet 1530 располагает расширенным функционалом, гарантирует упрощенную установку и надежную связь. Отличается небольшими габаритами и быстрой развертываемостью. Предлагает высокую скорость передачи данных, подходит для сетей фирм, компаний, предприятий.

Точки доступа оборудованы упрощенной настройкой, являются эффективными и масштабитуемыми. Осуществляют защиту инвестиций, организуют безопасность, предотвращают подключение неавторизованных пользователей. Минимизируют риск простоя, оперативно справляются с поставленными задачами.


02.11n and Related Capabilities

●  1530I: 3x3 MIMO with 3 spatial streams (2.4 GHz) and 2x3 MIMO with 2 spatial streams (5 GHz)
●  20-MHz (2.4 and 5 GHz) and 40-MHz (5 GHz only) channels
●  PHY data rates up to 300 Mbps
●  Packet aggregation: A-MPDU (Tx/Rx)
●  802.11 dynamic frequency selection (DFS)
●  Cyclic shift diversity (CSD) support

Maximum Equivalent Isotropically Radiated Power (EIRP)

1530I: 32 dBm (2.4 and 5 GHz)

Note: The maximum EIRP will vary by channel and according to individual country regulations. Refer to the product documentation for specific details.

3G/LTE/WiMAX Co‑Location

3G/LTE/WiMAX signal rejection: 33-45 dB. Refer to product documentation for specific details.

Interfaces

WAN port: 10/100/1000BASE-T Ethernet, autosensing (RJ-45)

LAN port: 10/100/1000BASE-T Ethernet, autosensing (RJ-45)

Management console port (RJ-45) with Reset button

DC power input

Multicolor LED

Dimensions
(L x W x H)

1530I: 9 x 7 x 4 in. (23 x 17 x 10 cm)           Volume: 179 cubic in. (2.9 liters)

Weight

1530I: 5.0 lb (2.3 kg)

Wall/pole mounting bracket: 0.5 lb (0.2 kg)

Tilt/horizontal mounting bracket: 2.4 lb (1.1 kg)

Environmental

Operating temperature: -30° to 65°C (-22° to 149°F) ambient; -30° to 55°C (-22° to 131°F) with solar loading (1200 W/m2)

Storage temperature: -50° to 85°C (-58° to 185°F)

Operating altitude: 10,000 ft (3048 m)

Humidity: 0 - 100%, condensing

Wind resistance:

●  Up to100 mph sustained winds
●  Up to 140 mph wind gusts

Environmental Ratings

●  IEC 60529 IP67
●  Icing protection    MIL-STD-810F (13mm)
●  Corrosion            MIL-STD-810F (192 hours)
●  Solar radiation      EN 60068-2-5 (1200 W/m2)
●  Vibration              ANSI_C136.31-2001

Antenna Gain

●  Integrated dual-band, mixed polarized omnidirectional antenna radome (1530i)
◦   3 dBi (2.4 GHz), 5 dBi (5 GHz)
●  External dual-band omnidirectional antennas
◦   AIR-ANT2547VG-N (4dBi, 2.4 GHz; 7 dBi, 5 GHz)
●  External dual-band directional antennas
◦   AIR-ANT2588P3M-N= (8 dBi, 2.4 and 5 GHz)
●  External single-band antennas
◦   2.4 GHz
◦   AIR-ANT2450V-N (5 dBi, omni)
◦   AIR-ANT2480V-N (8 dBi, omni)
◦   AIR-ANT2413P2M-N= (13 dBi, dual polarized patch)
◦   5 GHz
◦   AIR-ANT5180V-N (8 dBi, omni)
◦   AIR-ANT5114P2M-N= (14 dBi, dual polarized patch)

Powering Options

1530I/1530E

●  24 to57 VDC
●  Power over Ethernet (PoE) (802.3at or Cisco Universal PoE [UPoE])

Power Consumption

1530I: < 30 W

Compliance

Safety

●  UL60950, 2nd Edition
●  CAN/CSA-C22.2 No. 60950, 2nd Edition
●  IEC 60950, 2nd Edition
●  EN 60950, 2nd Edition

Immunity

●  <= 5 mJ for 6kV/3kA @ 8/20 ms waveform
●  ANSI/IEEE C62.41
●  EN61000-4-5 Level 4 AC Surge Immunity
●  EN61000-4-4 Level 4 Electrical Fast Transient Burst Immunity
●  EN61000-4-3 Level 4 EMC Field Immunity
●  EN61000-4-2 Level 2 ESD Immunity
●  EN60950 Overvoltage Category IV

Radio approvals

●  FCC Part 15.247, 15.407
●  FCC Bulletin OET-65C
●  RSS-210
●  RSS-102
●  AS/NZS 4268.2003
●  ARIB-STD 66 (Japan)
●  ARIB-STD T71 (Japan)
●  EN 300 328
●  EN 301 893

EMI and susceptibility

●  FCC part 15.107, 15.109
●  ICES-003
●  EN 301 489-1, -17

Security

●  Wireless bridging/mesh
◦   X.509 digital certificates
◦   MAC address authentication
◦   Advanced Encryption Standard (AES), Temporal Key Integrity Protocol (TKIP)
●  Wireless access
◦   802.11i, Wi-Fi Protected Access (WPA2), WPA
◦   802.1X authentication, including Extensible Authentication Protocol (EAP) and Protected EAP (EAP-PEAP), EAP Transport Layer Security (EAP-TLS), EAP-Tunneled TLS (EAP-TTLS), EAP-Subscriber Identity Module -d (EAP-SIM), and Cisco LEAP
◦   VPN pass-through
◦   IP Security (IPsec)
◦   Layer 2 Tunneling Protocol (L2TP)
●  MAC address filtering
