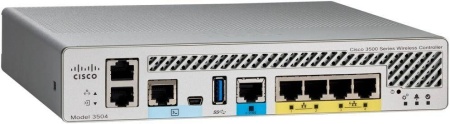

Контроллер Cisco 3504 разработан для сетей малых и средних предприятий, фирм, учреждений. Обеспечивает централизованное администрирование, контролирует работоспособность системы, обнаруживает и устраняет поломки. Является безопасным, масштабируемым, поддерживает несколько режимов развертывания. Совместим с оборудованием Cisco 5520 и 8540.
Устройство оборудовано расширяемой программируемой архитектурой, которая освобождает ИТ-персонал от трудоемких однотипных задач. Серия предназначена для производительности 802. 11ac Wave 2, предлагает повышенную пропускную способность, увеличивает время бесперебойной работы. Признана полнофункциональной, подходит для применения на ограниченной площади.
|
Wireless |
IEEE 802.11a, 802.11b, 802.11g, 802.11d, WMM/802.11e, 802.11h, 802.11n, 802.11k, 802.11r, 802.11u, 802.11w, 802.11ac Wave 1 and Wave 2 |
|
Wired, switching, and routing |
IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX specification, 1000BASE-T. 1000BASE-SX, 1000-BASE-LH, IEEE 802.1Q VLAN tagging, IEEE 802.1AX Link Aggregation |
|
Data Request For Comments (RFC) |
● RFC 768 UDP ● RFC 791 IP ● RFC 2460 IPv6 ● RFC 792 Internet Control Message Protocol (ICMP) ● RFC 793 TCP ● RFC 826 Address Resolution Protocol (ARP) ● RFC 1122 Requirements for Internet Hosts ● RFC 1519 Classless Interdomain Routing (CIDR) ● RFC 1542 BOOTP ● RFC 2131 Dynamic Host Configuration Protocol (DHCP) ● RFC 5415 CAPWAP Protocol ● RFC 5416 CAPWAP Binding for 802.11 |
|
Security standards |
● Wi-Fi Protected Access (WPA) ● IEEE 802.11i (WPA2, RSN) ● RFC 1321 MD5 Message-Digest Algorithm ● RFC 1851 Encapsulating Security Payload (ESP) Triple Data Encryption Standard (3DES) Transform ● RFC 2104 HMAC: Keyed Hashing for Message Authentication ● RFC 2246 Transport Layer Security (TLS) Protocol Version 1.0 ● RFC 2401 Security Architecture for the Internet Protocol ● RFC 2403 HMAC-MD5-96 within ESP and Authentication Header (AH) ● RFC 2404 HMAC-SHA-1-96 within ESP and AH ● RFC 2405 ESP DES-CBC Cipher Algorithm with Explicit IV ● RFC 2407 Interpretation for Internet Security Association and Key Management Protocol (ISAKMP) ● RFC 2408 ISAKMP ● RFC 2409 Internet Key Exchange (IKE) ● RFC 2451 ESP Cipher Block Chaining (CBC)-Mode Cipher Algorithms ● RFC 3280 Internet X.509 Public Key Infrastructure (PKI) Certificate and Certificate Revocation List (CRL) Profile ● RFC 4347 Datagram Transport Layer Security ● RFC 5426 TLS Protocol Version 1.2 |
|
Encryption |
Wired Equivalent Privacy (WEP) and Temporal Key Integrity Protocol-Message Integrity Check ● Advanced Encryption Standard (AES): CBC, Counter with CBC-MAC (CCM), Counter with CBC Message Authentication Code Protocol (CCMP) ● Data Encryption Standard (DES): DES-CBC, 3DES ● Secure Sockets Layer (SSL) and TLS: RC4 128-bit and RSA 1024- and 2048-bit ● DTLS: AES-CBC ● IPsec: DES-CBC, 3DES, AES-CBC ● 802.1AE MACsec encryption |
|
Authentication, Authorization, and Accounting (AAA) |
● IEEE 802.1X ● RFC 2548 Microsoft Vendor-Specific RADIUS Attributes ● RFC 2716 Point-to-Point Protocol (PPP) Extensible Authentication Protocol (EAP)-TLS ● RFC 2865 RADIUS Authentication ● RFC 2866 RADIUS Accounting ● RFC 2867 RADIUS Tunnel Accounting ● RFC 2869 RADIUS Extensions ● RFC 3576 Dynamic Authorization Extensions to RADIUS ● RFC 5176 Dynamic Authorization Extensions to RADIUS ● RFC 3579 RADIUS Support for EAP ● RFC 3580 IEEE 802.1X RADIUS Guidelines ● RFC 3748 EAP ● Web-based authentication ● TACACS support for management users |
|
Management |
● Simple Network Management Protocol (SNMP) v1, v2c, v3 ● RFC 854 Telnet ● RFC 1155 Management Information for TCP/IP-Based Internets ● RFC 1156 MIB ● RFC 1157 SNMP ● RFC 1213 SNMP MIB II ● RFC 1350 Trivial File Transfer Protocol (TFTP) ● RFC 1643 Ethernet MIB ● RFC 2030 Simple Network Time Protocol (SNTP) ● RFC 2616 HTTP ● RFC 2665 Ethernet-Like Interface Types MIB ● RFC 2674 Definitions of Managed Objects for Bridges with Traffic Classes, Multicast Filtering, and Virtual Extensions ● RFC 2819 Remote Monitoring RMON MIB ● RFC 2863 Interfaces Group MIB ● RFC 3164 Syslog ● RFC 3414 User-Based Security Model (USM) for SNMPv3 ● RFC 3418 MIB for SNMP ● RFC 3636 Definitions of Managed Objects for IEEE 802.3 MAUs ● Cisco private MIBs |
|
Management interfaces |
● Web-based: HTTP/HTTPS ● Command-line interface: Telnet, Secure Shell (SSH) Protocol, serial port ● Cisco Prime Infrastructure |
|
Interfaces and indicators |
● 1x Multigigabit Ethernet interface (up to 5 Gigabit Ethernet) + 4x 1 Gigabit Ethernet interfaces (RJ-45) ● 1x service port: 1 Gigabit Ethernet port (RJ-45) ● 1x redundancy port: 1 Gigabit Ethernet port (RJ-45) ● 1x console port: Serial port (RJ-45) ● 1x console port: Serial port (mini-B USB) ● 1x USB 3.0 port ● LED indicators: Network link, diagnostics |
|
Physical and environmental |
Dimensions: 1.73 x 9.5 x 8.5 in. (43.94 x 214.3 x 215.9 mm) Weight: 4.4lbs Temperature: Operating: 32 to 104 °F (0 to 40°C) Storage: -4 to 158 °F (-20 to 70°C) Humidity: Operating Humidity: 5% to 95% RH non-condensing Storage Humidity: 0% to 95% RH non-condensing Power adapter: Input power: 100 to 240 VAC; 50/60 Hz Heat dissipation(without PoE): 47W, 160BTU/hr Heat dissipation(with PoE): 98W, 335BTU/hr |
|
Regulatory compliance |
CE Markings per directives 2004/108/EC and 2006/95/EC Safety: ● UL 60950-1 Second Edition● CAN/CSA-C22.2 No. 60950-1 Second Edition ● EN 60950-1 Second Edition ● IEC 60950-1 Second Edition ● AS/NZS 60950-1 ● GB4943 2011 EMC - Emissions: ● 47CFR Part 15 (CFR 47) Class B ● AS/NZS CISPR22 Class B ● EN 55032 Class B ● ICES003 Class A VCCI Class B ● EN 61000-3-2 EN 61000-3-3 KN22 Class B ● CNS13438 Class B EMC - Immunity: ● EN 55024 ● CISPR24 ● EN 300386 ● KN24 |
