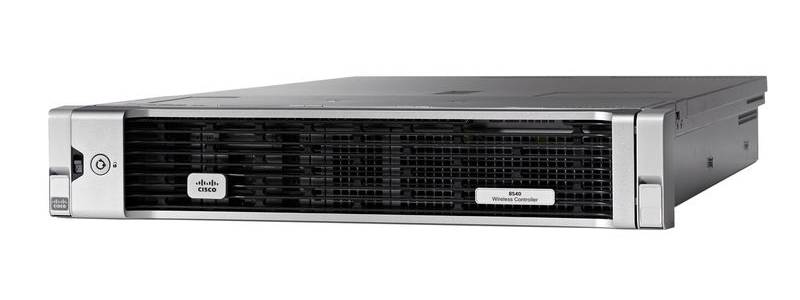

Контроллер Cisco 8540 предоставляет мощную, масштабируемую, эластичную платформу для средних и крупных организаций. Может подключаться к другому оборудованию, организует централизованное управление. Применяет расширяемую архитектуру, которая форсирует и упрощает работу ИТ-персонала.
Устройство оптимизировано для производительности 802. 11ac Wave2, поддерживает потоковую телеметрию, предлагает бесперебойную доступность приложений. Включает технологию AVC для сохранения высокой пропускной способности и безопасности. Гарантирует улучшенную масштабируемость, сокращает время простоя системы. Имеет упрощенный графический интерфейс для быстрой настройки, содержит интуитивно понятные панели для выявления и устранения неполадок.
|
Wireless |
IEEE 802.11a, 802.11b, 802.11g, 802.11d, WMM/802.11e, 802.11h, 802.11n, 802.11k, 802.11r, 802.11u, 802.11w, 802.11ac Wave1 and Wave2 |
|
Wired/switching/routing |
IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX specification, 1000BASE-T. 1000BASE-SX, 1000-BASE-LH, IEEE 802.1Q VLAN tagging, IEEE 802.1AX Link Aggregation |
|
Data Request For Comments (RFC) |
● RFC 768 UDP ● RFC 791 IP ● RFC 2460 IPv6 ● RFC 792 ICMP ● RFC 793 TCP ● RFC 826 ARP ● RFC 1122 Requirements for Internet Hosts ● RFC 1519 CIDR ● RFC 1542 BOOTP ● RFC 2131 DHCP ● RFC 5415 CAPWAP Protocol Specification ● RFC 5416 CAPWAP Binding for 802.11 |
|
Security standards |
● Wi-Fi Protected Access (WPA) ● IEEE 802.11i (WPA2, RSN) ● RFC 1321 MD5 Message-Digest Algorithm ● RFC 1851 ESP Triple DES Transform ● RFC 2104 HMAC: Keyed Hashing for Message Authentication ● RFC 2246 TLS Protocol Version 1.0 ● RFC 2401 Security Architecture for the Internet Protocol ● RFC 2403 HMAC-MD5-96 within ESP and AH ● RFC 2404 HMAC-SHA-1-96 within ESP and AH ● RFC 2405 ESP DES-CBC Cipher Algorithm with Explicit IV ● RFC 2407 Interpretation for ISAKMP ● RFC 2408 ISAKMP ● RFC 2409 IKE ● RFC 2451 ESP CBC-Mode Cipher Algorithms ● RFC 3280 Internet X.509 PKI Certificate and CRL Profile ● RFC 4347 Datagram Transport Layer Security ● RFC 5246 TLS Protocol Version 1.2 |
|
Encryption |
● Wired Equivalent Privacy (WEP) and Temporal Key Integrity Protocol-Message Integrity Check (TKIP-MIC): RC4 40, 104 and 128 bits (both static and shared keys) ● Advanced Encryption Standard (AES): Cipher Block Chaining (CBC), Counter with CBC-MAC (CCM), Counter with Cipher Block Chaining Message Authentication Code Protocol (CCMP) ● Data Encryption Standard (DES): DES-CBC, 3DES ● Secure Sockets Layer (SSL) and Transport Layer Security (TLS): RC4 128-bit and RSA 1024- and 2048-bit ● DTLS: AES-CBC ● IPsec: DES-CBC, 3DES, AES-CBC ● 802.1AE MACsec encryption |
|
Authentication, Authorization, and Accounting (AAA) |
● IEEE 802.1X ● RFC 2548 Microsoft Vendor-Specific RADIUS Attributes ● RFC 2716 PPP EAP-TLS ● RFC 2865 RADIUS Authentication ● RFC 2866 RADIUS Accounting ● RFC 2867 RADIUS Tunnel Accounting ● RFC 2869 RADIUS Extensions ● RFC 3576 Dynamic Authorization Extensions to RADIUS ● RFC 5176 Dynamic Authorization Extensions to RADIUS ● RFC 3579 RADIUS Support for EAP ● RFC 3580 IEEE 802.1X RADIUS Guidelines ● RFC 3748 Extensible Authentication Protocol (EAP) ● Web-based authentication ● TACACS support for management users |
|
Management |
● Simple Network Management Protocol (SNMP) v1, v2c, v3 ● RFC 854 Telnet ● RFC 1155 Management Information for TCP/IP-Based Internets ● RFC 1156 MIB ● RFC 1157 SNMP ● RFC 1213 SNMP MIB II ● RFC 1350 TFTP ● RFC 1643 Ethernet MIB ● RFC 2030 SNTP ● RFC 2616 HTTP ● RFC 2665 Ethernet-Like Interface types MIB ● RFC 2674 Definitions of Managed Objects for Bridges with Traffic Classes, Multicast Filtering, and Virtual Extensions ● RFC 2819 RMON MIB ● RFC 2863 Interfaces Group MIB ● RFC 3164 Syslog ● RFC 3414 User-Based Security Model (USM) for SNMPv3 ● RFC 3418 MIB for SNMP ● RFC 3636 Definitions of Managed Objects for IEEE 802.3 MAUs ● Cisco private MIBs |
|
Management Interfaces |
● Web-based: HTTP/HTTPS ● Command-line interface: Telnet, Secure Shell (SSH) Protocol, serial port ● Cisco Prime Infrastructure |
|
Interfaces and Indicators |
● 4 x 10 Gigabit Ethernet interfaces or 4 x 1 Gigabit Ethernet interfaces ● Small Form-Factor Pluggable Plus (SFP+) options (only Cisco SFP+s supported), including S-Class Optics ● Small Form-Factor Pluggable (SFP) options (only Cisco SFPs supported), including S-Class Optics ● 1 x service port: 1 Gigabit Ethernet port (RJ-45) ● 1 x redundancy port: 1 Gigabit Ethernet port (RJ-45) ● 1 x Cisco Integrated Management Controller port: 1 10/100/1000 Ethernet (RJ-45) ● 1 x console port: Serial port (RJ-45) ● LED indicators: Network Link, Diagnostics |
|
Physical dimensions |
● Dimensions (WxDxH): 18.96 x 30.18 x 3.43 in. (48.2 x 76.6 x 8.70 cm) including handles ● Weight: 44 lb (19.9 kg) with 2 power supplies |
|
Environmental conditions |
Air temperature: ● Appliance operating: 41° to 104°F (5° to 40°C), derate the maximum temperature by 1.0°C per every 1000 ft. (305m) of altitude above sea level● Appliance nonoperating: -40° to 149°F (-40° to 65°C) Humidity: ● Appliance operating: 10% to 90%; noncondensing at 82°F (28°C)● Appliance nonoperating: 5% to 93% at 82°F (28°C) Altitude: ● Appliance operating: 0 to 3,000m (0 to 10,000 ft.)● Appliance nonoperating: 0 to 12,192 m (0 to 40,000 ft.) Electrical input: ● AC input frequency range: 47 to 63 Hz● Input voltage range: ◦ Minimum: 90 VAC ◦ Maximum: 264 VAC ◦ Maximum power 538W ● Heat dissipation: 1836 BTU/hr ● Sound power level measure: ◦ A-weighted per ISO 7779 LpAm (dBA), operation at 77°F (25°C): 59.4 |
|
Regulatory compliance |
CE Markings per directives 2004/108/EC and 2006/95/EC Safety: ● UL 60950-1 Second Edition● CAN/CSA-C22.2 No. 60950-1 Second Edition ● EN 60950-1 Second Edition ● IEC 60950-1 Second Edition ● AS/NZS 60950-1 ● GB4943 2001 EMC - Emissions: ● 47CFR Part 15 (CFR 47) Class A● AS/NZS CISPR22 Class A ● EN55022 Class A ● ICES003 Class A VCCI Class A ● EN61000-3-2 EN61000-3-3 KN22 Class A ● CNS13438 Class A EMC - Immunity: ● EN55024● CISPR24 ● EN300386 ● KN24 |
