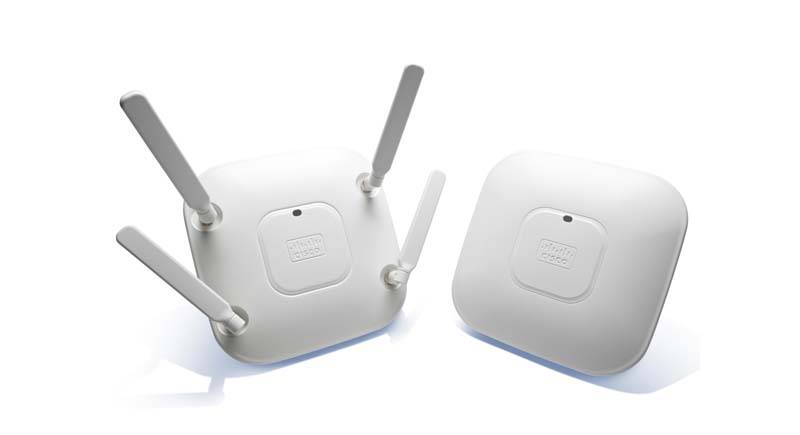

Серия Cisco Aironet 2600 создана для использования в сложных условиях, где требуется повышенная производительность. Эффективно справляется с поставленными. Предоставляет повышенную скорость передачи данных, организует оптимальный охват территории.
Точки доступа снабжены расширенным функционалом, позволяют поддерживать высочайшую пропускную способность в корпоративных, офисных и сервисных сетях. Являются надежными, высокопроизводительными, оснащены улучшенной масштабируемостью, уменьшают риск простоя.
|
802.11n Version 2.0 (and Related) Capabilities |
● 3x4 multiple-input multiple-output (MIMO) with three spatial streams ● Maximal ratio combining (MRC) ● 802.11n and 802.11a/g beamforming ● 20- and 40-MHz channels ● PHY data rates up to 450 Mbps (40-MHz with 5 GHz) ● Packet aggregation: Aggregated MAC Protocol Data Unit (A-MPDU) (Tx/Rx), Aggregated MAC Protocol Service Unit (A-MSDU) (Tx/Rx) ● 802.11 dynamic frequency selection (DFS) ● Cyclic shift diversity (CSD) support |
|||||||
|
Integrated Antenna |
● 2.4 GHz, Gain 4 dBi, internal omnidirectional, horizontal beamwidth 360° ● 5 GHz, Gain 4 dBi, internal omnidirectional, horizontal beamwidth 360° |
|||||||
|
Interfaces |
● 10/100/1000BASE-T autosensing (RJ-45) ● Management console port (RJ-45) |
|||||||
|
Indicators |
● Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors |
|||||||
|
Dimensions |
● Access point (without mounting bracket): 8.69x8.69x2.11in. (22.1x22.1x5.4) |
|||||||
|
Weight |
● 2.3 lbs (1.04 kg) (2.7 lbs for external) |
|||||||
|
Environmental |
Cisco Aironet 2600i ● Nonoperating (storage) temperature: -22 to 158°F (-30 to 70°C)● Nonoperating (storage) Altitude Test 25˚C, 15,000 ft. ● Operating temperature: 32 to 104°F (0 to 40°C) ● Operating humidity: 10 to 90% percent (noncondensing) ● Operating Altitude Test: 40˚C, 9843 ft. |
|||||||
|
System Memory |
● 256 MB DRAM ● 32 MB flash |
|||||||
|
Input Power Requirements |
● AP2600: 44 to 57 VDC ● Power Supply and Power Injector: 100 to 240 VAC; 50 to 60 Hz |
|||||||
|
Powering Options |
● 802.3af Ethernet Switch ● Cisco AP2600 Power Injectors (AIR-PWRINJ4=) ● Cisco AP2600 Local Power Supply (AIR-PWR-B=) |
|||||||
|
Power Draw |
● AP2600: 12.95W Note: When deployed using Power over Ethernet (PoE), the power drawn from the power sourcing equipment will be higher by some amount depending on the length of the interconnecting cable. This additional power may be as high as 2.45W, bringing the total system power draw (access point + cabling) to 15.4W. |
|||||||
|
Warranty |
Limited Lifetime Hardware Warranty |
|||||||
|
Compliance Standards |
◦ UL 60950-1 ◦ CAN/CSA-C22.2 No. 60950-1 ◦ UL 2043 ◦ IEC 60950-1 ◦ EN 60950-1 ◦ EN 50155 ● Radio approvals: ◦ FCC Part 15.247, 15.407 ◦ RSS-210 (Canada) ◦ EN 300.328, EN 301.893 (Europe) ◦ ARIB-STD 66 (Japan) ◦ ARIB-STD T71 (Japan) ◦ EMI and susceptibility (Class B) ◦ FCC Part 15.107 and 15.109 ◦ ICES-003 (Canada) ◦ VCCI (Japan) ◦ EN 301.489-1 and -17 (Europe) ◦ EN 60601-1-2 EMC requirements for the Medical Directive 93/42/EEC ● IEEE Standard: ◦ IEEE 802.11a/b/g, IEEE 802.11n, IEEE 802.11h, IEEE 802.11d ● Security: ◦ 802.11i, Wi-Fi Protected Access 2 (WPA2), WPA ◦ 802.1X ◦ Advanced Encryption Standards (AES), Temporal Key Integrity Protocol (TKIP) ● EAP Type(s): ◦ Extensible Authentication Protocol-Transport Layer Security (EAP-TLS) ◦ EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2) ◦ Protected EAP (PEAP) v0 or EAP-MSCHAPv2 ◦ Extensible Authentication Protocol-Flexible Authentication via Secure Tunneling (EAP-FAST) ◦ PEAPv1 or EAP-Generic Token Card (GTC) ◦ EAP-Subscriber Identity Module (SIM) ● Multimedia: ◦ Wi-Fi Multimedia (WMM ™) ● Other: ◦ FCC Bulletin OET-65C ◦ RSS-102 |
|||||||
|
Серия
|
Aironet 2600 |
|
Тип товара
|
Комплект точек доступа |
|
Тип использования
|
Внутренняя |
|
Тип антенны
|
Внутренняя |
|
Кол-во антенн
|
3 |
|
Частота
|
2,4 ГГЦ - 5 ГГЦ |
|
Поддержка PoE
|
Да |
