Артикул:
DCX 8510-8
По запросу
Под заказ
Наши менеджеры обязательно свяжутся с вами и уточнят условия заказа
Рассчитать доставку
Самовывоз - бесплатно
Почта для заявок: info@linkas.ru
Характеристики
Серия
—
DCX 8510
Объем оперативной памяти
—
N/A
Тип товара
—
Коммутатор
Условия гарантии
Текст гарантии
Цена действительна только для интернет-магазина и может отличаться от цен в розничных магазинах

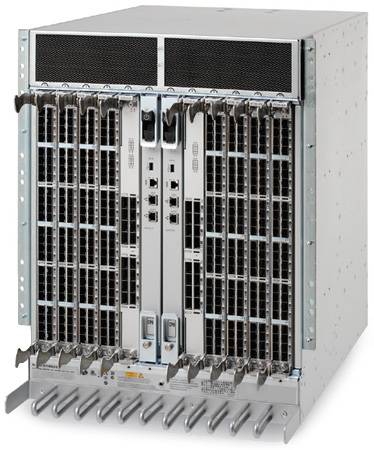

Brocade DCX 8510 Backbone относится к энергоэффективным коммутаторам, которые включают надежность, гибкость, высокую производительность. Разработаны для средних и крупных предприятий, предоставляют беспрецедентный уровень масштабируемости и расширенные возможности. Обеспечивают простое управление, снижают эксплуатационные расходы.
Модель DCX 8510-8 организует бесперебойную высокоэффективную работу. Предназначена для развивающегося бизнеса, гарантирует беспрепятственный доступ к информации и сокращение инфраструктуры, максимизирует общую плотность портов. Может поддерживать 2, 4, 8, 10 и 16 Гбит/с FC, FICON и 1/10 GbE FC по IP (FCIP). Использует упрощенный сетевой дизайн, уменьшает сложность и стоимость сети, быстро адаптируется к росту и изменениям на сервере и в хранилище.
Модель DCX 8510-8 организует бесперебойную высокоэффективную работу. Предназначена для развивающегося бизнеса, гарантирует беспрепятственный доступ к информации и сокращение инфраструктуры, максимизирует общую плотность портов. Может поддерживать 2, 4, 8, 10 и 16 Гбит/с FC, FICON и 1/10 GbE FC по IP (FCIP). Использует упрощенный сетевой дизайн, уменьшает сложность и стоимость сети, быстро адаптируется к росту и изменениям на сервере и в хранилище.
Chassis |
Single chassis: 384 16 Gbps universal (E, F, D, M, and EX) Fibre Channel ports using 48-port 16 Gbps Fibre Channel blades. 512 8 Gbps universal (E, F, D, M, and EX) Fibre Channel ports using 64-port 8 Gbps Fibre Channel blades. Multi-chassis with ICL ports: Up to 3456 16 Gbps universal Fibre Channel ports (using 16 Gbps 48-port blades); up to 4608 8 Gbps universal Fibre Channel ports (using 8 Gbps 64-port blades); ICL ports (32 or 16 per chassis, optical QSFP) connect up to nine chassis in a full mesh topology or up to 10 chassis in a core-edge topology. Connecting five or more chassis via ICLs requires an Enterprise ICL license. |
Control processor | Redundant (active/standby) control processor modules |
Scalability | Full fabric architecture of 239 switches |
Certified maximum | 6000 active nodes; 56 switches, 19 hops in Brocade Fabric OS® fabrics; 31 switches, three hops in Brocade M-EOS fabrics; larger fabrics certified as required |
Special-purpose blades |
Brocade FS8-18 Encryption Blade provides plug-in encryption of data on disk or tape, supporting industry-standard AES-256 and DataFort-compatible encryption mode (16 8 Gbps Fibre Channel ports; up to four blades; requires Brocade Network Advisor). Brocade FX8-24 Extension Blade provides SAN extension over IP networks (12 8 Gbps Fibre Channel ports, 10 1 GbE ports with license option for up to two 10 GbE ports per blade; up to four blades). |
Performance | Fibre Channel: 2.125 Gbps line speed, full duplex; 4.25 Gbps line speed, full duplex; 8.5 Gbps line speed, full duplex; 10.53 Gbps line speed, full duplex; 14.025 Gbps line speed, full duplex; auto-sensing of 2, 4, 8, and 16 Gbps port speeds; 10 Gbps and optionally programmable to fixed port speed |
ISL trunking |
Frame-based trunking with up to eight 16 Gbps ports per ISL trunk; up to 128 Gbps per ISL trunk Exchange-based load balancing across ISLs with DPS included in Brocade Fabric OS |
Chassis bandwidth | 8.2 Tbps per chassis (384 ports X 16 Gbps data rate + 2.048 Tbps ICL bandwidth) |
Slot bandwidth | 512 Gbps (data rate) |
Local switching bandwidth |
512 Gbps for Brocade FC16-32: 32 ports X 16 Gbps (data rate) 768 Gbps for Brocade FC16-48: 48 ports X 16 Gbps (data rate) 256 Gbps for Brocade FC8-32E: 32 ports X 8 Gbps (data rate) 384 Gbps for Brocade FC8-48E: 48 ports X 8 Gbps (data rate) 512 Gbps for Brocade FC8-64: 64 ports X 8 Gbps (data rate) |
ICL bandwidth |
2.048 Tbps; 32 ICL ports provide the equivalent of 128 16 Gbps ports. Each ICL port provides 64 Gbps bandwidth over a QSFP (4X16 Gbps) link. Frame-based trunking is enabled between four ICLs. DPS distributes exchanges across all frame trunks. |
Switch latency | Locally switched port latency is 700 ns; blade-to-blade latency is 2.1 μsec; encryption/compression is 5.5 μsec per node; Forward Error Correction (FEC) adds 400 ns between E_Ports (enabled by default). |
Maximum frame size | 2112-byte payload |
Frame buffers | 8192 per 16-port group on 32-port blades and up to 8192 per 24-port group on 48-port blades, dynamically allocated |
Classes of service | Class 2, Class 3, Class F (inter-switch frames) |
Fibre Channel port types | D_Port (Diagnostic Port), E_Port, EX_Port, F_Port, M_Port (Mirror Port); self-discovery based on switch type (U_Port); optional port type control |
Data traffic types | Fabric switches supporting unicast |
USB | 1 USB port per control processor for firmware download, support save, and configuration upload/download |
High Availability | |
Architecture | Passive backplane; redundant active/passive control processor; redundant active/active core switching blades; redundant WWN cards |
Chassis power | Two 2000 W AC power supply modules (100 to 240 V auto-sensing), 2N redundancy; Brocade DCX 8510-8 supports two additional power modules |
Cooling | Three blower assembly modules (two required for operation) |
Solution availability | Designed to provide 99.999 percent uptime capabilities; hot-pluggable redundant power supplies, fans, WWN cards, processors, core switching, port blades, and optics; online diagnostics; non-disruptive firmware download and activation |
Management | |
Management | HTTP, SNMP v1/v3 (FE MIB, FC Management MIB), SSH; Auditing, Syslog; Brocade Advanced Web Tools, Brocade APM, Brocade Fabric Watch; Brocade Network Advisor SAN Enterprise (Brocade DCX 8510-8, Brocade DCX 8510-4) or Brocade Network Advisor SAN Professional/Professional Plus (Brocade DCX 8510-4 only); Command Line Interface (CLI); SMI-S compliant; Administrative Domains; trial licenses for add-on capabilities |
Security | AES-GCM-256 encryption on ISLs; DH-CHAP (between switches and end devices), FCAP switch authentication; FIPS 140-2 L2-compliant, HTTPS, IPsec, IP filtering, LDAP with IPv6, Port Binding, RADIUS, User-defined Role-Based Access Control (RBAC), Secure Copy (SCP), Secure RPC, SFTP, SSH v2, SSL, Switch Binding, Trusted Switch |
Management access | 10/100/1000 Ethernet (RJ-45) per control processor, in-band over Fibre Channel; serial port (RJ-45) and one USB per control processor module; call-home integration enabled through Brocade Network Advisor |
Diagnostics | D_Port offline diagnostics, including electrical/optical loopback, link traffic/latency/distance; POST and embedded online/offline diagnostics, including environmental monitoring, FCping and Pathinfo (FC traceroute), frame viewer, non-disruptive daemon restart, port mirroring, optics health monitoring, power monitoring (16 Gbps blades-only), RAStrace logging, and Rolling Reboot Detection (RRD) |
Mechanical | |
Enclosure | Rear panel-to-door airflow |
Mounting | Rack-mountable in a standard 19-inch EIA cabinet |
Size |
Width: 43.74 cm (17.22 in.) Height: 61.24 cm (24.11 in., 14U) Depth (without door): 61.19 cm (24.09 in.) Depth (with door): 73.20 cm (28.82 in.) |
System weight |
103.50 kg (228.20 lb) for 384-port configuration fully populated 39.55 kg (82.20 lb) for chassis |
Environment | |
Temperature |
Operating: 0°C to 40°C (32°F to 104°F) Non-operating: –25°C to 70°C (–13°F to 158°F) |
Humidity |
Operating: 20% to 85% RH non-condensing at 40°C (104°F) Non-operating and storage (non-condensing): 10% to 93% at 70°C (158°F) |
Altitude | Up to 3000 meters (9842 feet) |
Shock |
Operating: 20 g, 6 ms, half sine Non-operating: 33 g, 11 ms, half sine |
Vibration |
Operating: 0.5 g p-p, 5 to 500 Hz Non-operating: 2.0 g p-p, 5 to 500 Hz |
Heat dissipation |
Min: 32-port configuration (no QSFP), 986 W, 3365 BTU/hr Max: 384-port configuration (fully loaded with QSFPs), 2429 W, 8283 BTU/hr |
CO2 emissions |
7.8 metric tonnes per year (with 384 ports at 0.42 kg/kWh) 0.95 kg per Gbps per year |
Power | |
Supported power range |
Voltage Range: 85 to 264 VAC Auto-volt Nominal: 100 to 240 VAC Power 85 to 132 VAC: 1000 W 180 to 264 VAC: 2000 W |
In-rush current | 20 Amps maximum, peak |
Frequency | 47 to 63 Hz (Nominal: 50 to 60 Hz) |
