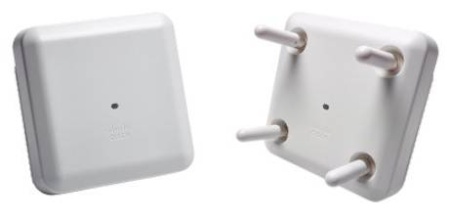

Точка доступа Cisco Aironet 3800 AIR-AP3802p-E-K9C

Артикул: AIR-AP3802p-E-K9C

Официальный дилер

В наличии / под заказ
Скидка на товар: до 10%

Бесплатный подбор: 8 (800) 511-12-04


Артикул AIR-AP3802p-E-K9C
Серия 3800
Доставка: от 2 до 6 недель
Оплата: в рублях по курсу ЦБ на день оплаты по безналичному расчёту.
  • Описание
  • Характеристики

Cisco Aironet 3800 построены для небольших предприятий, офисов, филиалов. Гарантируют повышенную безопасность, исключительную производительность, максимальную пропускную способность. Содержат расширенный функционал, проводят моментальный сетевой анализ, отслеживают аномалии в работе и предоставляют высокую трудоспособность.

Точки доступа контролируют исправность системы, выявляют и стремительно уничтожают потенциальные угрозы. Используют встроенную гиперлокацию, организуют безопасное высокоскоростное подключение, поддерживают возможность выбора динамической полосы пропускания.


Software and supported wireless LAN controllers

●  Cisco Unified Wireless Network Software Release 8.2.111.0 or later
●  Cisco IOS® XE Software Release 16.3
●  Cisco 2500 Series Wireless Controllers, Cisco 3500 Series Wireless Controllers, Cisco Wireless Controller Module for ISR G2, Cisco Wireless Services Module 2 (WiSM2) for Catalyst® 6500 Series Switches, Cisco 5500 Series Wireless Controllers, Cisco Flex® 7500 Series Wireless Controllers, Cisco 8500 Series Wireless Controllers, Cisco Virtual Wireless Controller
●  Cisco Catalyst 3850 Series and 3650 Series Switches
●  Cisco Mobility Express

802.11n version 2.0 (and related) capabilities

●  4x4 MIMO with three spatial streams
●  Maximal Ratio Combining (MRC)
●  802.11n and 802.11a/g beamforming
●  20- and 40-MHz channels
●  PHY data rates up to 450 Mbps (40 MHz with 5 GHz)
●  Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
●  802.11 Dynamic Frequency Selection (DFS)
●  Cyclic Shift Diversity (CSD) support

802.11ac Wave 1 capabilities

●  4x4 MIMO with three spatial streams
●  MRC
●  802.11ac beamforming
●  20-, 40-, and 80-MHz channels
●  PHY data rates up to 1.3 Gbps (80 MHz in 5 GHz)
●  Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
●  802.11 DFS
●  CSD support

802.11ac Wave 2 capabilities

●  4x4 MU-MIMO with three spatial streams
●  MRC
●  802.11ac beamforming
●  20-, 40-, 80, 160-MHz channels
●  PHY data rates up to 5.2 Gbps
●  Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx)
●  802.11 DFS
●  CSD support

Wi-Fi Alliance Certified

●  Wi-Fi Certified a, b, g, n, ac
●  Wi-Fi Vantage
●  WMM
●  Passpoint

Integrated antenna

Flexible radio (either 2.4 GHz or 5 GHz)

●  2.4 GHz, gain 4 dBi, internal antenna, omnidirectional in azimuth
●  5 GHz, gain 6 dBi, internal directional antenna, elevation plane beamwidth 90°

Dedicated 5-GHz radio

●  5 GHz, gain 5 dBi, internal antenna, omnidirectional in azimuth

Smart Antenna Connector

●  Available on the 3802e Series and 3802p Series access points only
●  Requires the AIR-CAB002-DART-R= 2 ft smart antenna connector to RP-TNC connectors to connect a second antenna to the access point
●  Required when running the flexible radio as either a:
◦   Second 5-GHz serving radio
◦   Wireless Security Monitoring radio

Interfaces

◦   2 Ethernet ports
◦   100/1000/2500/5000 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz
◦   CAT 5e cabling
◦   Higher-quality 10GBASE-T (CAT 6/6a) cabling
◦   100/1000BASE-T autosensing (RJ-45 - AUX port)
◦   Management console port (RJ-45)

Indicators

●  Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors

Dimensions (W x L x H)

●  Access point (without mounting brackets): 3802I: 8.66 x 8.68 x 2.46 in. (22 x 22 x 6.25 cm), 3802E: 8.66 x 8.68 x 2.62 in. (22 x 22 x 6.7 cm), 3802P: 8.66 x 8.68 x 2.62 in. (22 x 22 x 6.7 cm)

Weight

●  4.6 lb (2.09 kg)

Input power requirements

●  802.3at PoE+, Cisco Universal Power over Ethernet (Cisco UPOE®)
●  802.3at power injector (AIR-PWRINJ6=)
●  50W power supply (AIR-PWR-50=)

Power draw

●  25.8W at the PSE (22.5W at the PD) with all features enabled except for the USB 2.0 port
●  30W at the PSE (25.5W at the PD) with the USB 2.0 port enabled

System memory

●  1024 MB DRAM
●  256 MB flash
